Product Overview

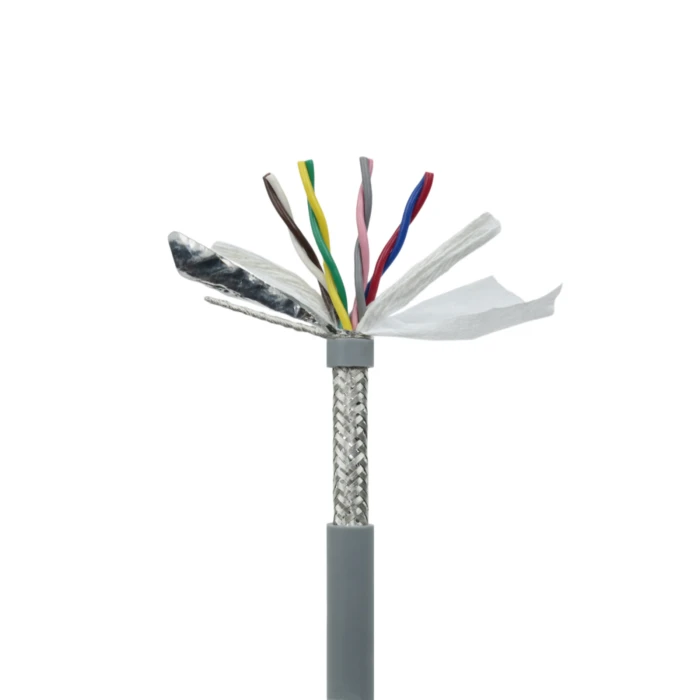

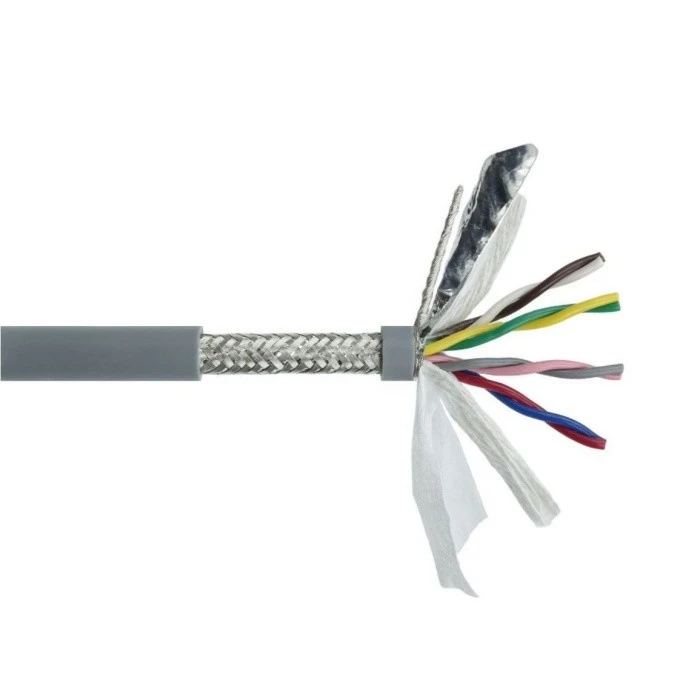

LIYCY-TP Twisted Pair Shielded Flexible Control Cable is a high-performance signal and control cable engineered for industrial environments requiring reliable data transmission under electromagnetic interference. Featuring twisted pair construction combined with aluminum foil and tinned copper braid shielding, this cable delivers superior EMI/RFI protection while maintaining excellent flexibility for dynamic installation.
As a Heavy Duty Twisted Pair Flexible Shield Control Cable, it is built to withstand mechanical stress, oil, and varying temperatures, making it ideal for continuous flexing applications in machinery, automation systems, and control panels. The overall shielded design ensures signal integrity even in electrically noisy environments, while the flexible PVC outer jacket allows for easy routing in tight spaces.
This Flexible Control Cable is suitable for both fixed installation and flexible (moving) applications, providing a versatile solution for a wide range of industrial control and data transmission needs.
Key Features
Dual Shielding:
Aluminum foil + tinned copper braid with ≥85% coverage for effective EMI and RFI rejection
Twisted Pair Construction:
Pair-twisted cores minimize crosstalk and ensure signal integrity for both analog and digital transmission
Excellent Flexibility:
Fine-stranded bare copper conductors (Class 5/6) with flexible PVC sheath, ideal for drag chain and continuous flexing installations
Heavy-Duty Durability:
Oil-resistant, abrasion-resistant, and chemical-resistant for harsh industrial conditions
Standards Compliance:
Manufactured to VDE/CE relevant standards, suitable for fixed and flexible moving installation
Technical Specifications
|
Parameter |
Specification |
|
Type |
LIYCY-TP |
|
Conductor |
Fine-stranded bare copper (Class 5/6) |
|
Insulation |
High-quality PVC compound |
|
Shielding |
Aluminum foil + tinned copper braid (≥85% coverage) |
|
Inner Sheath |
PVC (optional) |
|
Outer Sheath |
Oil-resistant flexible PVC |
|
Rated Voltage |
300/500 V |
|
Test Voltage |
2000 V AC |
|
Operating Temperature (fixed) |
-40°C to +80°C |
|
Operating Temperature (flexible) |
-5°C to +70°C |
|
Core Configurations |
2×0.5 / 2×0.75 / 2×1.0 / 2×1.5 / 4×0.5, etc. - customizable |
Applications
LIYCY-TP Twisted Pair Shielded Flexible Control Cable is widely used in:
Industrial automation and PLC control systems
CNC machinery and robotic arms
Variable Frequency Drive (VFD) signal connections
Measurement, control, and regulation technology
Data transmission in high-interference manufacturing plants
Machine tools, packaging, and textile equipment
Control cabinets and junction boxes
Sensor and actuator wiring
Why Choose Us
FONBO Cable specializes in the R&D and manufacturing of industrial cables. Our Heavy Duty Twisted Pair Flexible Shield Control Cable is produced in strict accordance with international standards, with every batch passing factory withstand voltage and continuity testing before shipment.
We support OEM/ODM customization - core count, cross-sectional area, sheath color, and surface printing can all be tailored to your requirements. Our products are exported to Southeast Asia, Central Asia, Europe, and North America.
As a professional supplier of industrial Flexible Control Cable, we offer competitive factory-direct pricing, stable lead times, and comprehensive after-sales technical support - making us your reliable partner for foreign trade procurement and project integration.
