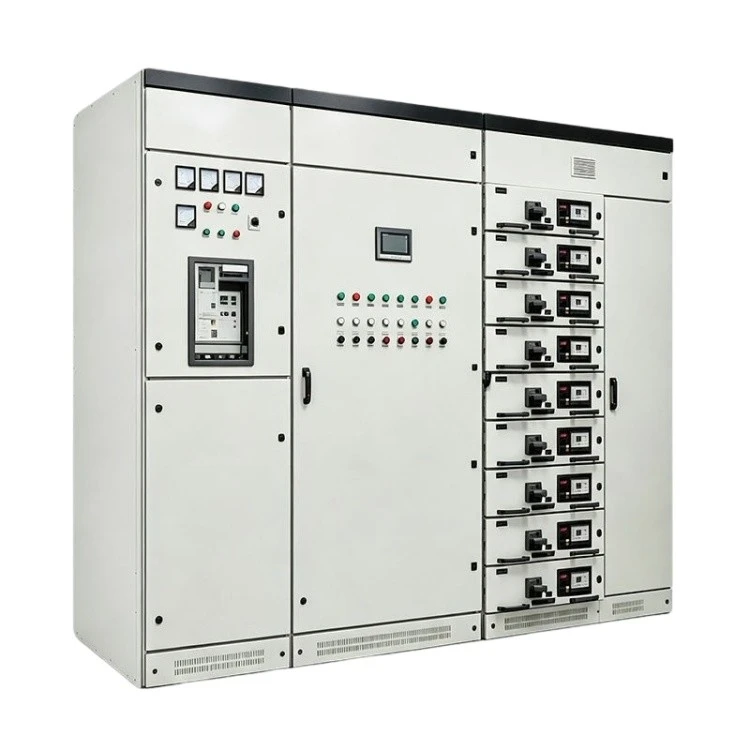

Medium Low Voltage Complete Switchgear Assembly

This all-in-one complete switchgear assembly realizes seamless docking of medium voltage power intake and low voltage power distribution. It integrates MV isolation, fault protection, voltage transformation linkage and LV shunt distribution, motor control and metering functions. The overall system is pre-assembled and pre-tested in the factory, greatly simplifying on-site electrical construction procedures, shortening project delivery cycles, and avoiding system compatibility problems caused by separate procurement of MV and LV equipment.

The professional MV LV combined switchgear adopts customized system parameter matching design based on project load characteristics. The medium-voltage protection logic and low-voltage control program are synergistically optimized to avoid coordination errors between independent voltage equipment. The unified busbar configuration and interlocking protection mechanism improve the overall anti-interference ability and operational stability of the power distribution system, effectively reducing system failure rates in complex industrial power supply scenarios.

This streamlined MV and LV switchgear package adopts intensive modular layout, abandoning the traditional scattered cabinet arrangement. The integrated frame structure optimizes internal wiring and heat dissipation paths, reducing overall floor space by more than 20% compared with separately installed MV and LV switchgears. It is especially suitable for substations and power distribution rooms with limited construction space, realizing high-density and high-efficiency power distribution layout.

The whole assembly strictly complies with IEC 62271 and IEC 61439 international standards, passing complete type tests including short-circuit resistance, insulation performance and mechanical operation. Equipped with multi-level electrical interlock and five-prevention safety mechanisms, the equipment effectively prevents mis-operation and arc flash risks. The isolated compartment design of MV and LV zones ensures independent and safe operation of high and low voltage systems without mutual interference.

Unified human-machine interaction interface and centralized monitoring system realize integrated management of MV and LV operating data, fault alarm and parameter adjustment. The standardized modular structure supports quick disassembly, inspection and replacement of components. The unified specification of spare parts reduces later operation and maintenance costs, realizing long-term stable and low-cost operation of the power distribution system.
