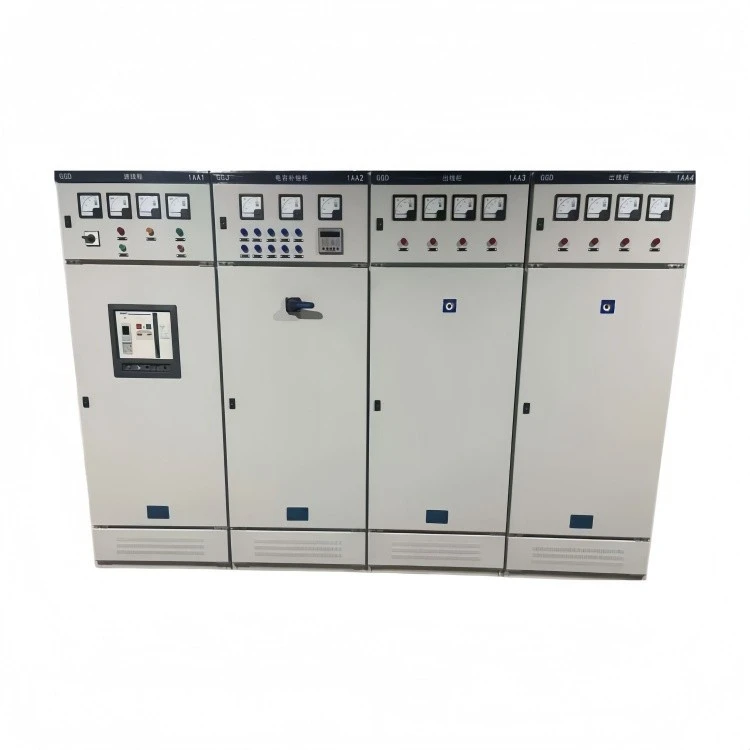

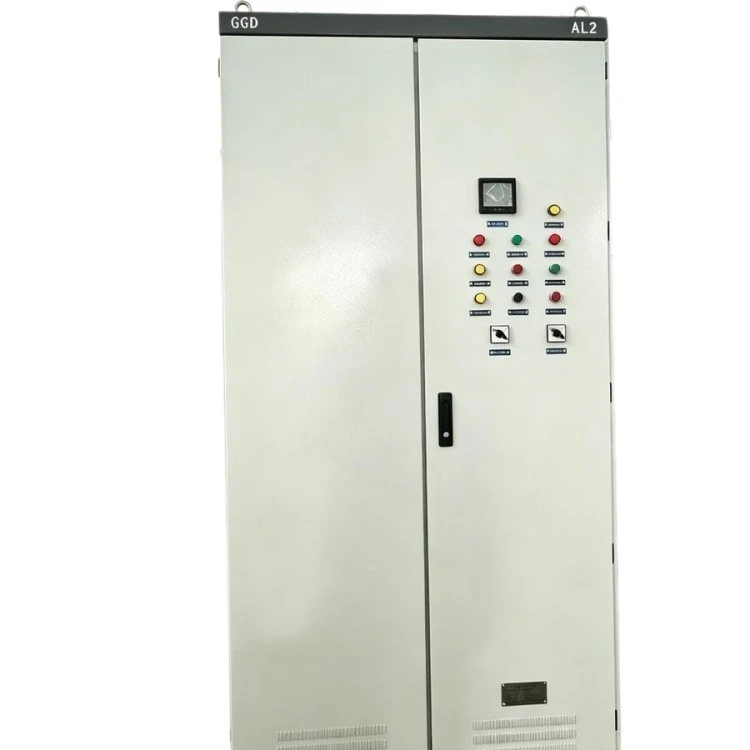

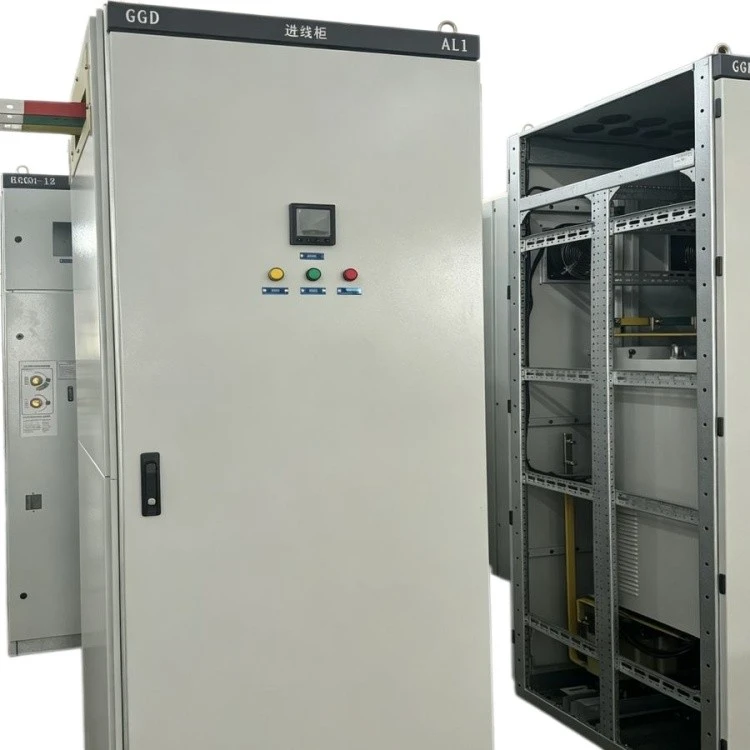

Product Overview
As a core fixed-type power distribution solution for global industrial and utility engineering, the GGD AC low voltage distribution cabinet features a front-access structural design, tailored for 50Hz AC power systems with 400V rated working voltage and 660V rated insulation voltage. Adopting industry-proven structure, high short-circuit withstand capacity and humanized operation design, this fixed low-voltage switchgear delivers outstanding stability and safety. It is widely deployed in power plants, urban substations, industrial manufacturing bases and commercial buildings worldwide, providing reliable, low-cost power distribution control for diverse medium and low-voltage power supply systems.
Key Features
Superior Short-Circuit Withstand Capacity:
Fully type-tested in strict accordance with international industry standards, the cabinet supports a rated short-time withstand current of 50kA/1s and a peak withstand current of 105kA. It can effectively resist instantaneous impact current caused by system short-circuit faults, providing dual safety protection for on-site operators and downstream electrical equipment.
Reliable Fixed Installation Structure:

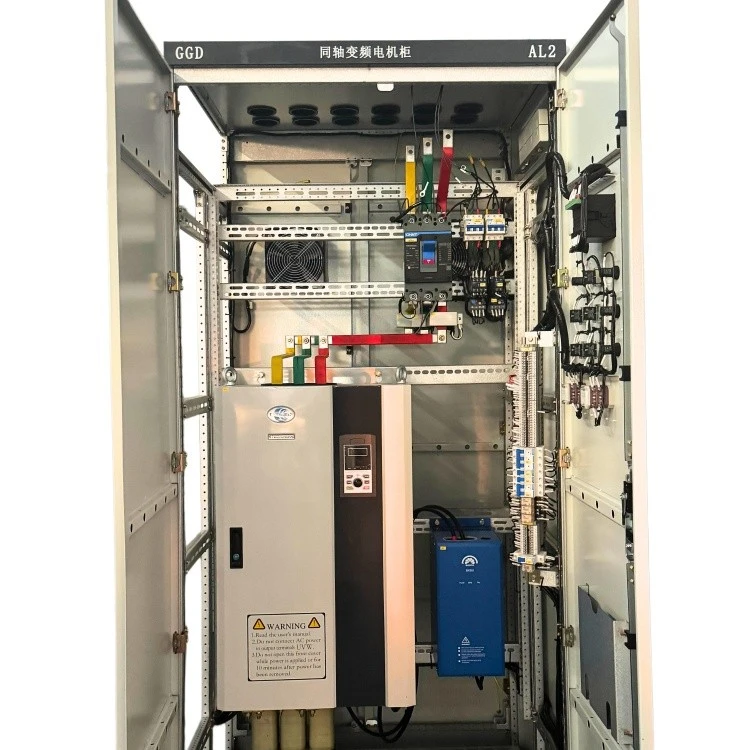

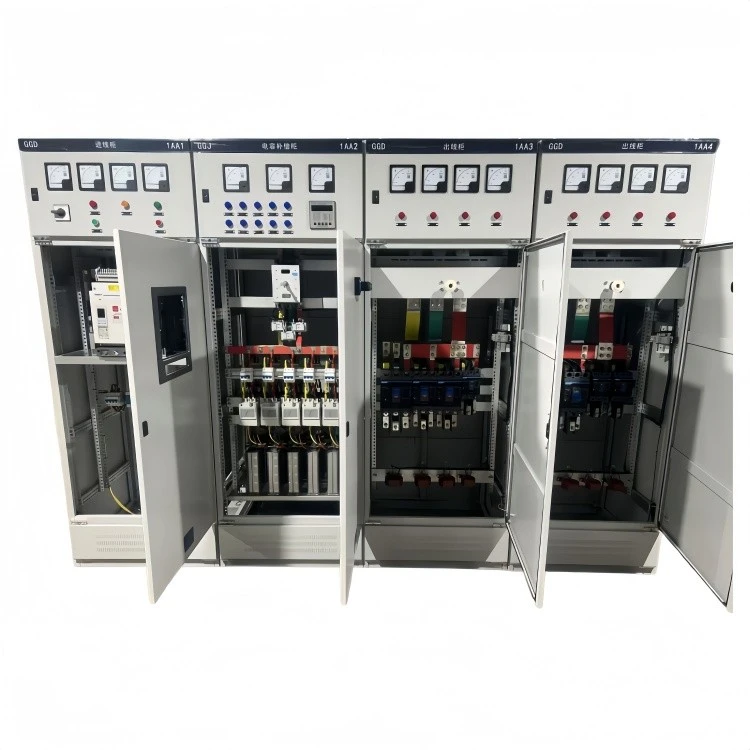

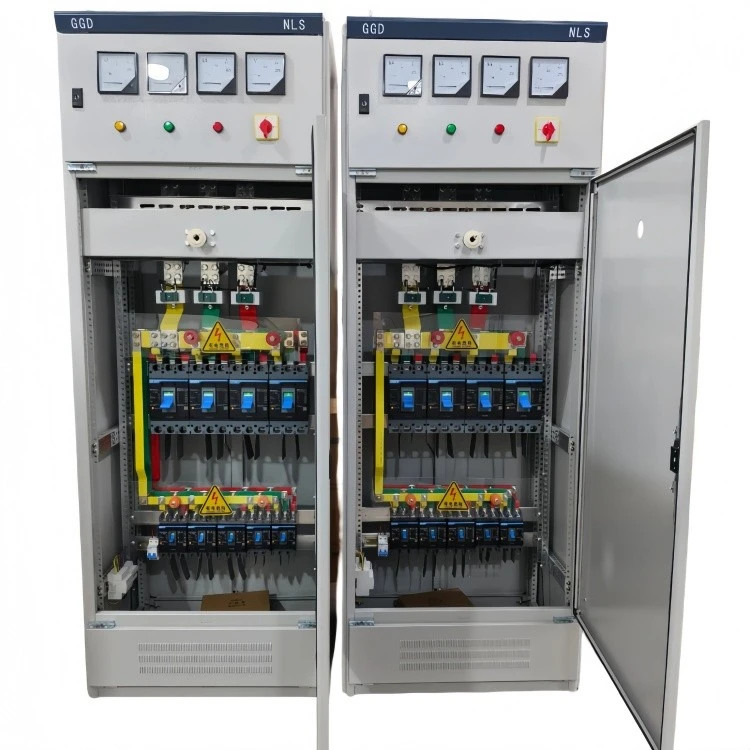

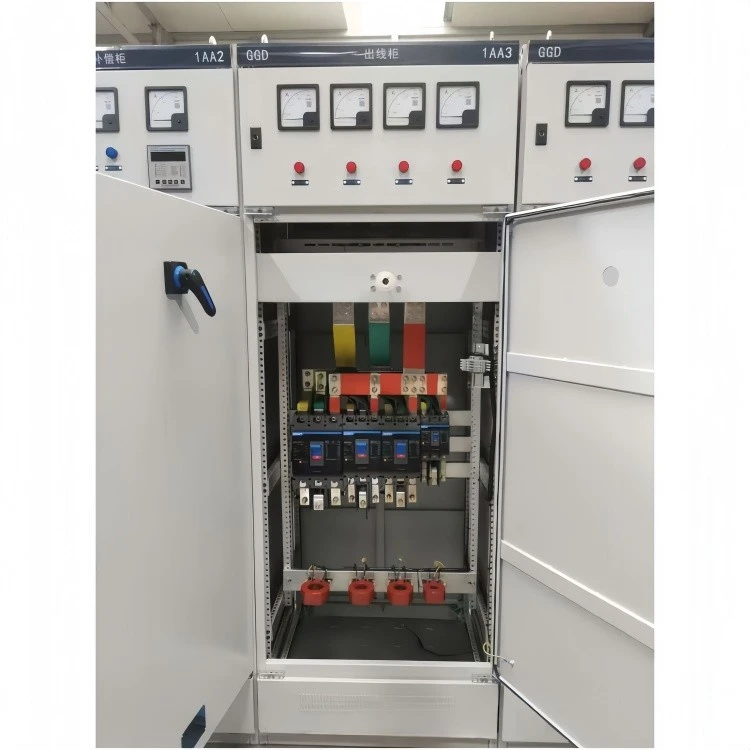

Adopts integrated fixed mounting for circuit breakers and laminated copper busbars, optimizing internal wiring layout and reducing wiring loopholes and later maintenance points. The mature fixed structure guarantees long-term stable and 24/7 uninterrupted operation, perfectly matching continuous production and power supply scenarios of industrial enterprises.
Modular & Flexible Configuration:
Built with high-strength cold-rolled steel frame and full-height protective doors, supporting dual top and bottom cable entry modes and detachable side panels. It supports flexible configuration of metering modules, independent compartment layouts and customized internal circuits, which can be perfectly adapted to personalized system design requirements of different industrial and utility projects.
Excellent Indoor Operational Reliability:
Comes with standard IP40 protection grade (IP54 optional for customized demands), which effectively isolates external dust, moisture and debris from internal live parts. The built-in scientific natural ventilation structure reasonably dissipates operating heat, keeps equipment temperature rise within the international safe standard range, and avoids equipment aging and failure caused by overheating.
Durable for Harsh Working Conditions:
The whole cabinet is made of high-quality thickened cold-rolled steel plates, with professional anti-corrosion, anti-rust and electrostatic spraying surface treatment. It owns outstanding mechanical shock resistance and environmental adaptability, and can maintain stable performance in high-dust and conventional humid indoor industrial environments for long-term continuous service.
Low Total Operation Cost:
All internal components adopt standardized and serialized industrial design, with high universality and interchangeability. The standardized assembly process greatly simplifies on-site installation, system commissioning and daily maintenance work, effectively reducing the overall project investment and later operation and maintenance costs for customers.
Technical Specifications
|
Parameter |
Value |
|
Model |
GGD AC Series (Fixed-mounted) |
|
Rated Working Voltage |
AC 400V / 50Hz |
|
Rated Insulation Voltage |
660V |
|
Main Busbar Rated Current |
630A – 4000A |
|
Rated Short-Time Withstand Current |
Up to 50 kA (1s) |
|
Rated Peak Withstand Current |
Up to 105 kA |
|
Protection Degree |
IP30 / IP40 (IP54 Optional) |
|
Installation Type |
Fixed-mounted, Floor-standing, Front Access & Maintenance |
|
Applicable Standards |
IEC 61439-1/-2, GB/T 7251.1 |
|
Application Scenarios |
Power Plants, Substations, Industrial Plants, Infrastructure & Commercial Projects |
Applications
Widely applicable to power generation, grid transmission and industrial power distribution scenarios, this professional low-voltage switchgear adapts to urban grid renovation, industrial park construction, full-factory power distribution and large-scale infrastructure projects. It supports flexible switching between small-batch single-line power supply and high-current main busbar operation, requiring minimal secondary modification. As a versatile and site-adaptive power distribution device, it perfectly meets the complex and diversified power supply demands of global industrial and commercial engineering projects.
Why Choose Our GGD AC Low Voltage Distribution Cabinet
Backed by in-depth industry expertise, rich practical experience, authoritative certification and credible after-sales guarantee (Google EEAT Standards), our factory focuses on the R&D, production and customization of low-voltage power distribution equipment. Every GGD AC low voltage distribution cabinet we supply strictly complies with international electrical standards, with standardized production and rigorous testing to deliver high-quality, project-matching power distribution solutions for global end-users and engineering contractors.
Professional Expertise (E-EAT): Specialized in low-voltage power distribution equipment manufacturing for years, we master mature production technology and electrical design logic. Our engineering team is proficient in IEC 61439-1/-2 and GB/T 7251.1 global standards, capable of providing standardized and customized electrical configuration solutions for different regional project requirements, avoiding technical mismatch and installation obstacles.
Rich Industrial Experience (EE-AT): We have completed mass delivery of power distribution equipment for hundreds of overseas power, industrial and infrastructure projects, accumulating mature experience in site adaptation, standard docking and project delivery. We are familiar with the power supply demands and acceptance specifications of Southeast Asia, Africa, Middle East and other mainstream overseas markets, ensuring zero obstacles for project inspection and commissioning.
Authoritative Qualification Support (EEA-T): All products pass formal type tests and are certified with ISO 9001 quality management system and CE certification, fully conforming to global industrial electrical safety standards. Complete and traceable factory test reports, wiring diagrams and technical documents are provided for each device, effectively improving project authority and pass rate.
Credible Factory Strength & Quality Control (EEAT): We adopt full in-house production processes including sheet metal processing, copper busbar precision fabrication, assembly and debugging, with no intermediate agents. Strict raw material inspection, process monitoring and finished-product testing ensure stable mechanical performance, strong fault resistance and long service life of each cabinet.
Cost-Effective Delivery & Full-Cycle Service: Modular standardized production shortens delivery cycle and controls project cost effectively. We provide 12–24 months official warranty, free pre-sales technical consultation, scheme optimization and remote after-sales troubleshooting. Long-term spare parts supply and technical support help customers solve post-project operation and maintenance problems efficiently.
Get A Custom Quote
If you are looking for reliable, standard-compliant and cost-effective fixed low voltage distribution equipment for industrial or utility projects, feel free to submit your electrical single-line diagram and site technical requirements. Our professional engineering team will tailor a matched GGD AC low voltage distribution cabinet solution, complete drawings and competitive quotation for you within 24–48 hours.
