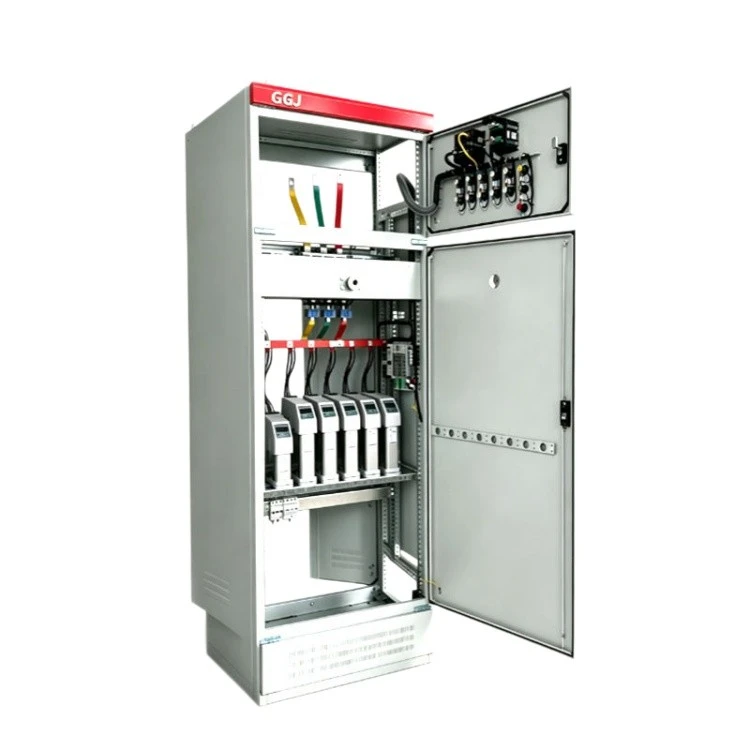

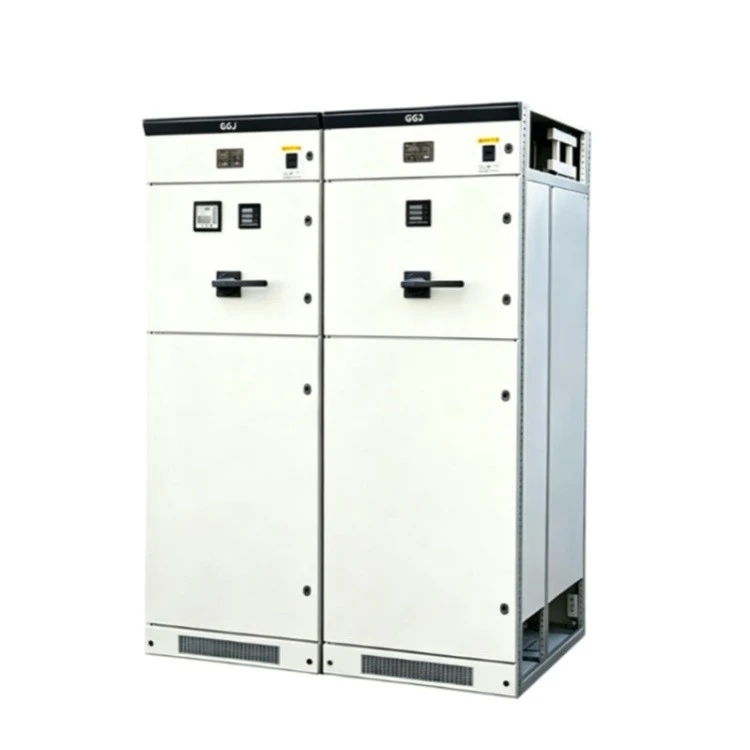

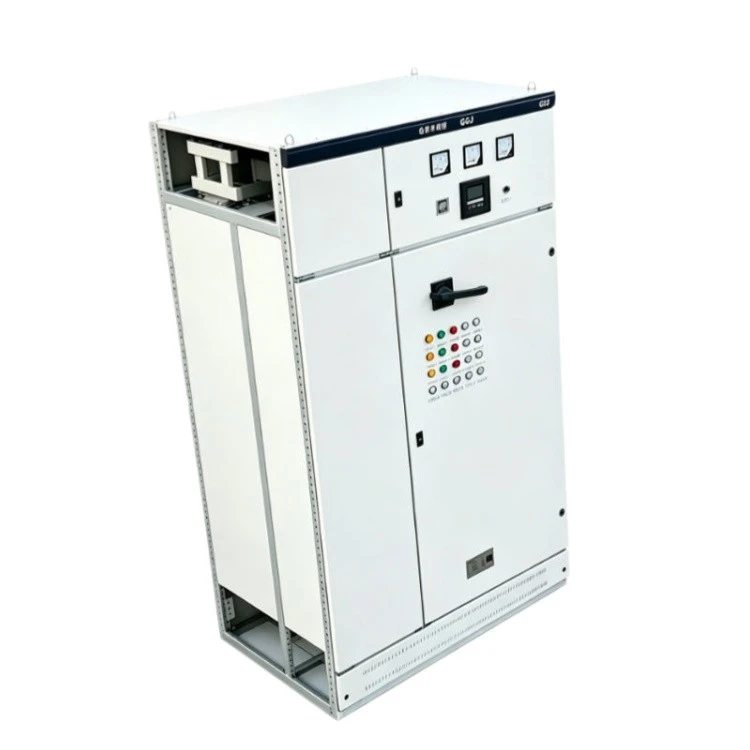

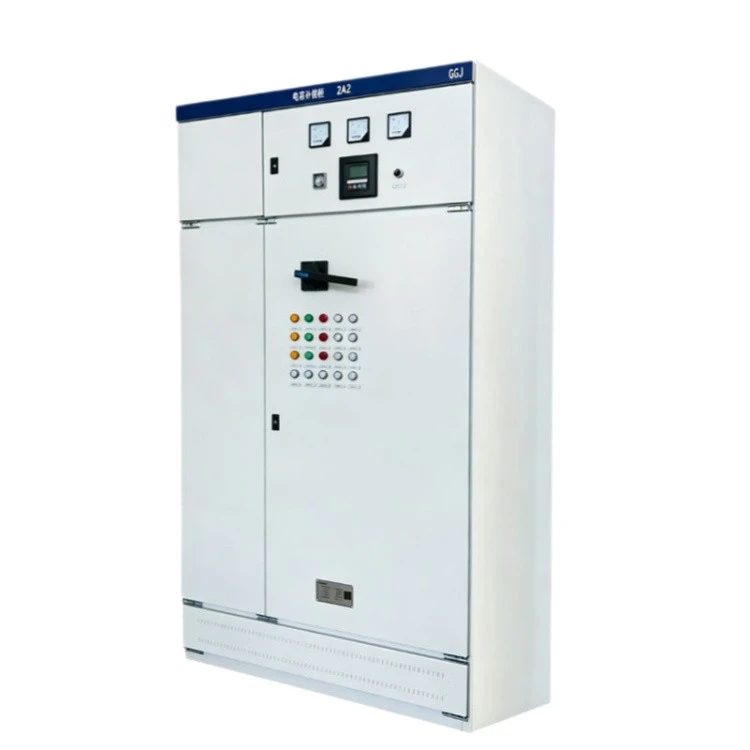

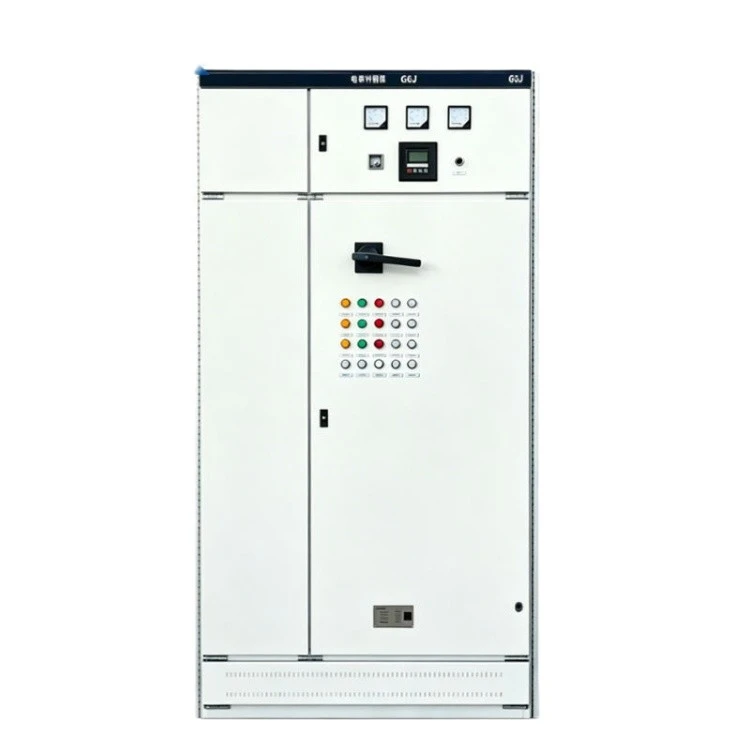

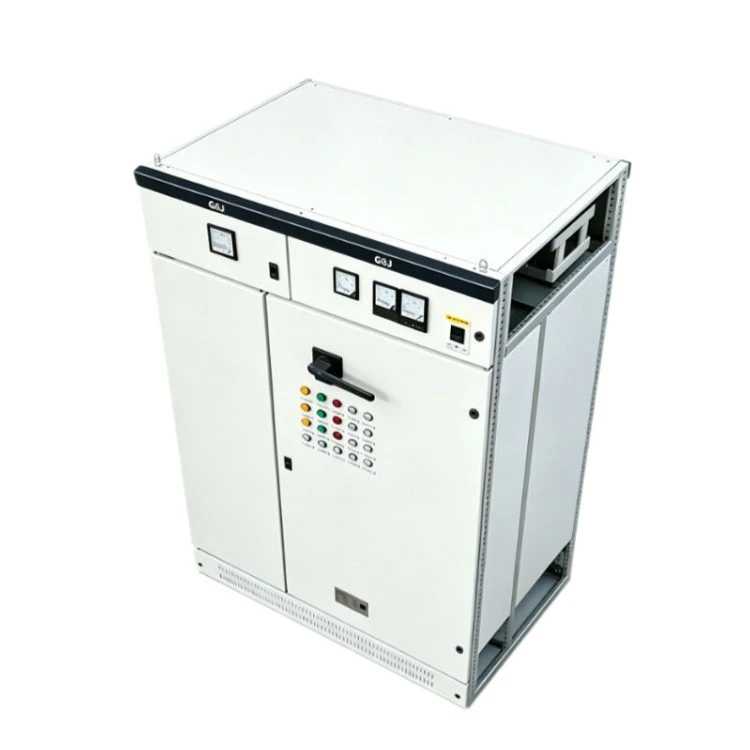

Product Overview
The GGJ low voltage reactive power compensation cabinet is a professional floor-mounted low-voltage switchgear developed specifically for industrial power grid energy-saving optimization and power quality improvement. Designed for 400V/50Hz low-voltage power distribution systems, thisreactive power compensation cabinet accurately compensates system reactive power, effectively solves the problems of low power factor, grid voltage fluctuation and excessive line loss commonly found in factory production lines, commercial power supply systems and industrial substations. As a core energy-saving power distribution device, it helps enterprises reduce grid penalty fees, stabilize operating voltage and improve the overall operational efficiency of power equipment.
Core Product Features
Precision Automatic Compensation:
Equipped with intelligent reactive power controllers and high-quality low-voltage compensation capacitors, the equipment supports dynamic real-time monitoring of grid power factor. It realizes automatic switching and stepwise compensation without manual intervention, ensuring the power factor is always maintained within the national and grid-compliant standard range, bringing stable energy-saving benefits for long-term operation.
Safe and Reliable Protection System:
Built with multiple protection functions including overvoltage, undervoltage, overcurrent, short circuit and capacitor over-temperature protection. The cabinet adopts arc-isolation structural design and high-insulation electrical components, which can effectively avoid equipment burnout, flashover and other faults caused by grid fluctuation, ensuring continuous and safe operation of industrial power systems.
Compact and Standardized Structure:
The whole machine adopts high-strength cold-rolled steel plate shell with anti-corrosion electrostatic spraying treatment. The internal layout is reasonably partitioned with clear circuit zoning, which facilitates daily inspection, maintenance and later component replacement. The standard cabinet size and modular assembly structure adapt to most indoor substation and distribution room layout standards.
Low Operation Noise & High Stability:
Adopts low-loss and low-noise compensation components, with optimized internal wiring and heat dissipation structure. The equipment operates stably with low noise and low heat generation, avoiding thermal aging of components caused by long-term full-load operation and extending the overall service life of the switchgear.
Significant Energy-Saving & Cost-Reducing Effect:
By optimizing grid reactive power balance, the device effectively reduces line reactive loss and transformer no-load loss, improves grid transmission efficiency, and avoids power factor penalty charges from power bureaus. It creates obvious economic benefits for industrial and commercial power consumption enterprises.
Technical Specifications
|
Parameter |
Technical Value |
|
Product Model |
GGJ Low Voltage Reactive Power Compensation Cabinet |
|
Rated Working Voltage |
AC 400V / 50Hz |
|
Compensation Mode |
Dynamic automatic step compensation |
|
Power Factor Adjustment Range |
0.85～0.99 (Adjustable) |
|
Protection Grade |
IP30 / IP40 (Optional) |
|
Installation Method |
Floor-standing, indoor fixed installation |
|
Executive Standard |
IEC 61439, GB/T 7251 |
|
Applicable Scenarios |
Industrial plants, substations, commercial buildings, infrastructure power distribution systems |
Application Scenarios
This high-performance power factor correction cabinet is widely used in low-voltage power distribution systems of various industrial and commercial scenarios. It is specially suitable for industrial plants with large inductive load equipment such as motors, fans and pumps, as well as power supply systems of shopping malls, office buildings, municipal infrastructure and industrial parks. It can targeted solve the problem of low power factor caused by inductive loads, realize grid power quality optimization, and is an essential energy-saving and power-quality-improving device for modern industrial substations.
Why Choose Our GGJ Compensation Cabinet
Our independently produced power factor correction cabinet wins long-term recognition from overseas customers with professional design, reliable quality and standardized service, fully meeting the technical and acceptance requirements of international engineering projects.
Professional Expertise (E):
Focusing on low-voltage power quality optimization equipment for many years, our R&D team is proficient in international power grid parameter standards and reactive power compensation principles. We can provide targeted configuration schemes according to different load types and regional power supply standards, avoiding unreasonable compensation and equipment waste.
Rich Industry Experience (E):
We have provided matching power factor correction solutions for a large number of overseas industrial renovation and new construction projects. We are familiar with the power consumption characteristics and project acceptance standards of Southeast Asia, Central Asia, Africa and other emerging markets, ensuring smooth project delivery and commissioning.
Authoritative Qualification (A):
All products comply with IEC international electrical standards and national specifications, with complete CE certification, ISO 9001 quality system certification and factory test reports. All technical parameters are truthful and effective, supporting third-party official inspection and project filing.
Reliable Quality & Service (T):
Adopting full in-house production and strict multi-process quality inspection, each equipment has stable performance and strong environmental adaptability. We provide complete English technical documents, 12–24 months warranty and lifelong remote technical support, helping customers quickly solve on-site operation and maintenance problems.
Get Custom Quote
If you need a stable, energy-saving and standard-compliant reactive power compensation cabinet for your industrial substation or power distribution renovation project, please provide your grid parameters, load capacity and site requirements. Our professional engineering team will provide you with personalized configuration scheme, detailed technical drawings and competitive quotation within 24–48 hours.
