JP Cabinet Integrated Metering Distribution Box Low Voltage Switchgear Distribution Box Cabinet Substation

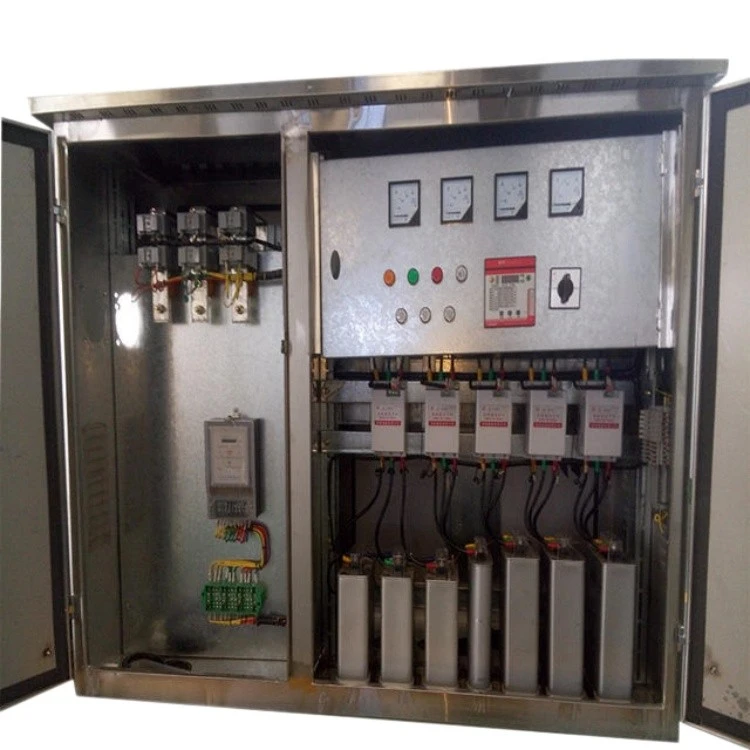

The internal metering cavity and distribution cavity are physically separated with insulating partitions, avoiding electromagnetic interference between metering components and power circuits. The integrated structural design of this integrated metering distribution box ensures accurate meter reading while maintaining safe and stable operation of distribution loops, realizing one-piece installation of metering and power distribution functions.

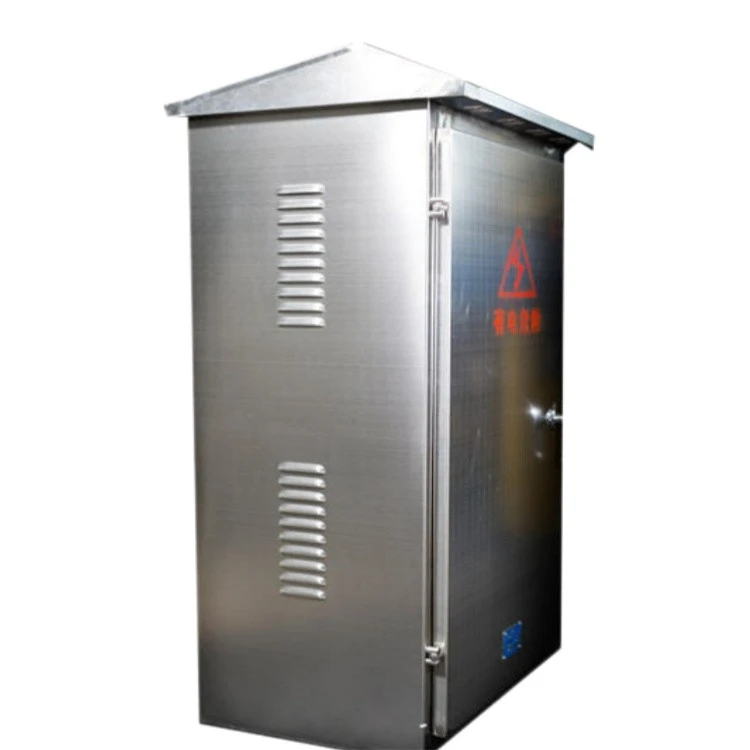

The whole cabinet is made of thickened metal plate or high-strength SMC composite material, with multi-layer anti-corrosion, waterproof and anti-aging surface treatment. Optimized waterproof diversion structure and closed sealing design effectively block rainwater, dust and condensation. The cabinet can operate stably for a long time in high temperature, rainy, windy and dusty outdoor environments without frequent maintenance.

Equipped with matched overload, short-circuit and leakage protection components, it can automatically cut off faulty circuits to protect rear-end electrical equipment and grid safety. The fully closed anti-tampering structure prevents unauthorized opening and private line modification, effectively avoiding electricity safety hazards and abnormal power loss in outdoor public power supply links.

Reserved standardized installation positions and wiring channels for intelligent acquisition modules and smart meters. This smart metering distribution box supports remote data transmission, automatic meter reading and real-time power data monitoring, adapting to the intelligent upgrading trend of modern power grids.

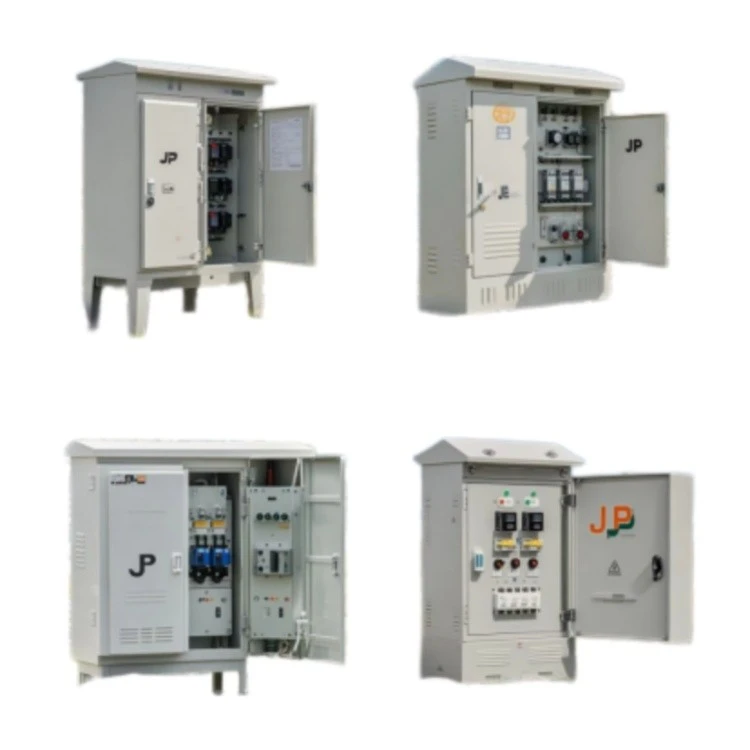

It supports multi-household centralized metering and multi-loop power distribution configuration. Both pole-mounted and floor-mounted installation methods are available to adapt to different outdoor construction conditions. The internal space is reasonably arranged with reserved expansion interfaces, facilitating later circuit adjustment and function upgrade.

Our electrical R&D team has long focused on structural optimization and power stability improvement for outdoor power equipment. We have in-depth mastery of core outdoor design technologies including anti-condensation structure, rainproof sealing, electromagnetic isolation and anti-tampering protection. Targeting common industry defects such as metering deviation caused by electromagnetic interference and short service life due to poor weather resistance, we adopt optimized dual-chamber independent isolation and full-surround sealing technology, ensuring long-term accurate metering and stable equipment operation in complex outdoor high-temperature, rainy and dusty environments.

We have accumulated a large number of successful delivery cases for overseas outdoor grid upgrading and terminal power supporting projects. Familiar with the power supply standards, outdoor installation specifications and project acceptance criteria of Southeast Asia, Africa, the Middle East, Latin America and other mainstream overseas markets, we can flexibly adjust cabinet materials, protection grades, internal loop layouts and installation forms according to local climate characteristics and grid construction requirements, ensuring seamless docking and smooth commissioning of various engineering projects.

All products are manufactured in strict accordance with IEC 61439-1/-2 and IEC 62056 international electrical and metering standards. All equipment has passed professional third-party performance testing, with complete ISO9001 quality system certification, CE certification and factory type test reports. Complete English technical manuals, test data and qualification documents can be provided to support project bidding, filing and third-party inspection, fully meeting international engineering standard requirements.

All production links including sheet metal processing, structural welding, anti-corrosion treatment, component assembly and factory debugging are independently completed in our factory with layered strict inspection, no intermediate outsourcing, realizing full-process quality controllability. We provide 12-24 months factory warranty, 24/7 online technical consultation and remote after-sales guidance. For customized projects, we support one-stop service from scheme optimization, drawing confirmation to on-site operation guidance, effectively solving various installation and operation problems for global customers.
