Product Overview

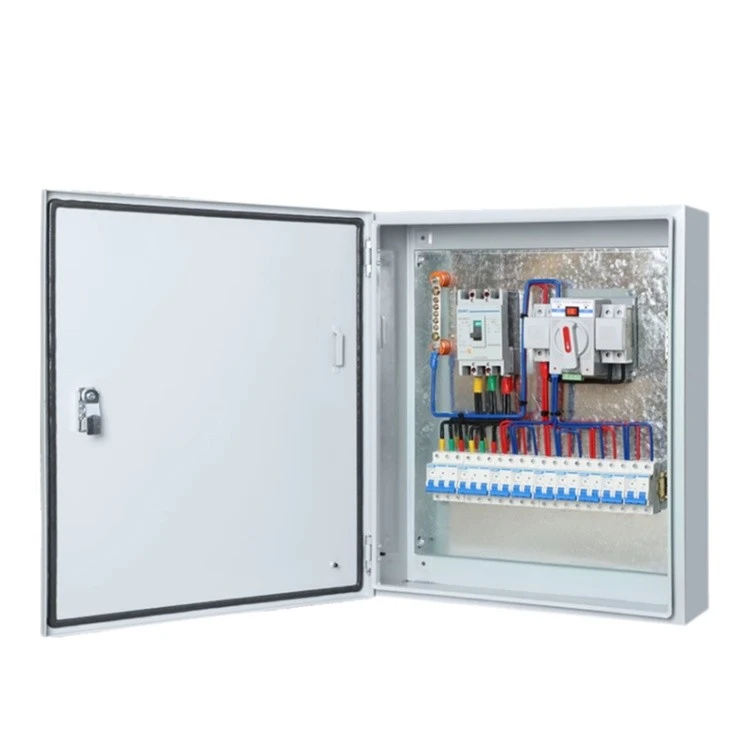

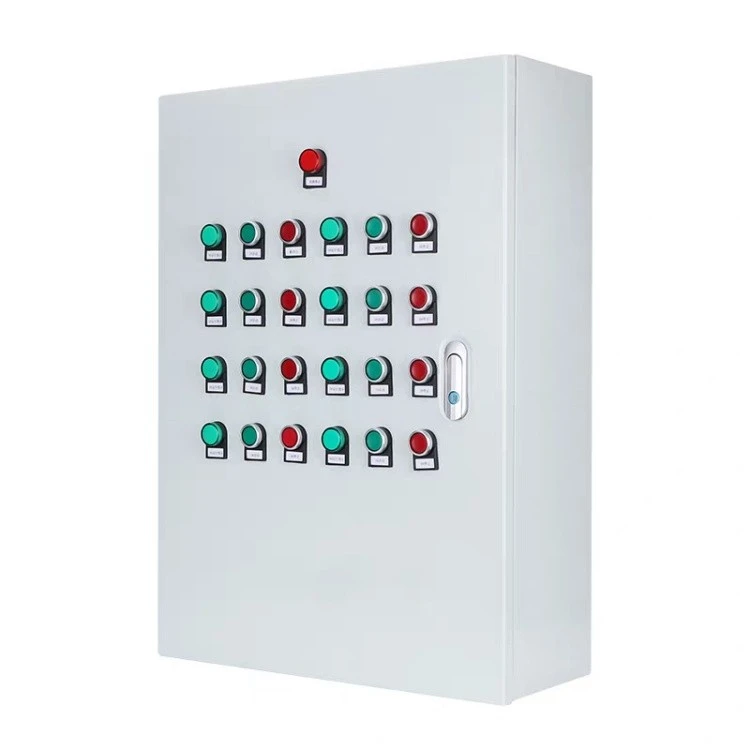

The JXF series is a compact, robust enclosure designed for secondary power splitting and local circuit protection in indoor environments. As a practical wall-mounted electrical solution, this Wall mounted distribution box serves both light-industry workshops and civil building projects under AC 400V 50Hz power grid. Different from large floor-standing switch cabinets, it adopts thin-wall reinforced sheet-metal construction with compact inner layout, saving floor space while offering reliable protection for branch circuits. Widely deployed for auxiliary power supply, lighting loops and small-equipment protection, it delivers stable circuit management for commercial premises, residential compounds and small-scale production sites.
Core Features
Space-Saving Wall-Mounted Structure:
Optimized box-type frame enables direct wall installation without dedicated substation room. Reinforced bending-formed shell resists minor impact; powder-coated surface brings anti-rust and anti-aging performance for long-term indoor service. Transparent window option allows visual inspection of breaker status without opening the door.
Flexible Internal Assembly Space:

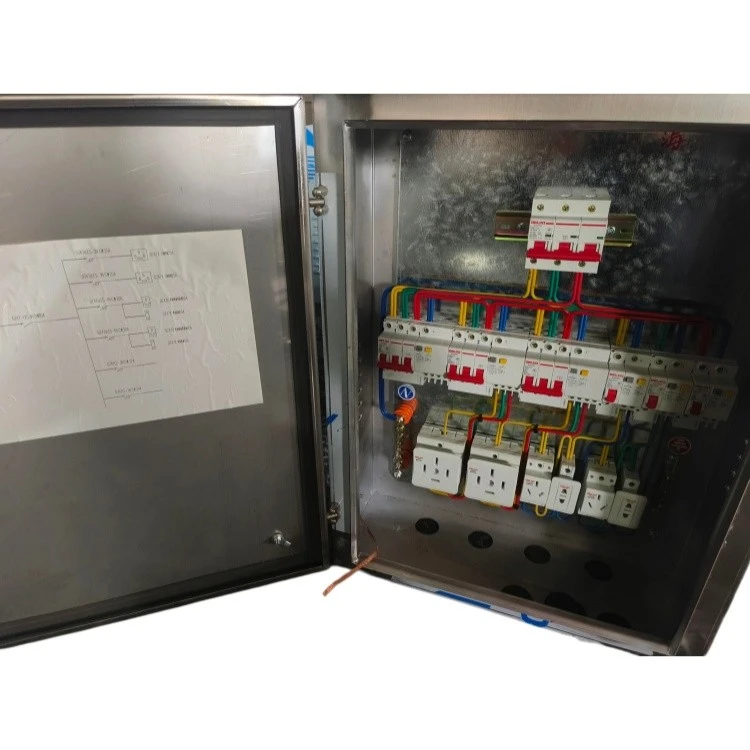

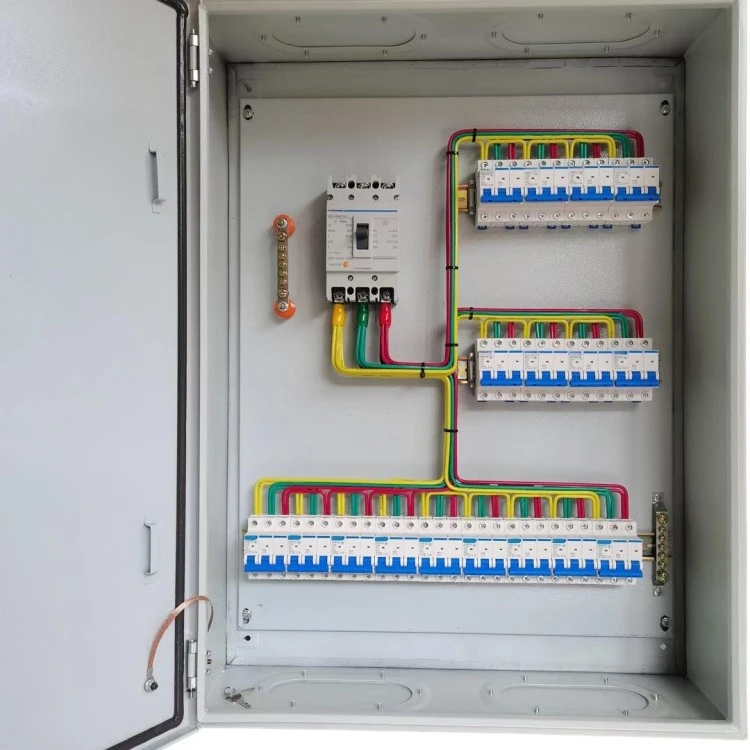

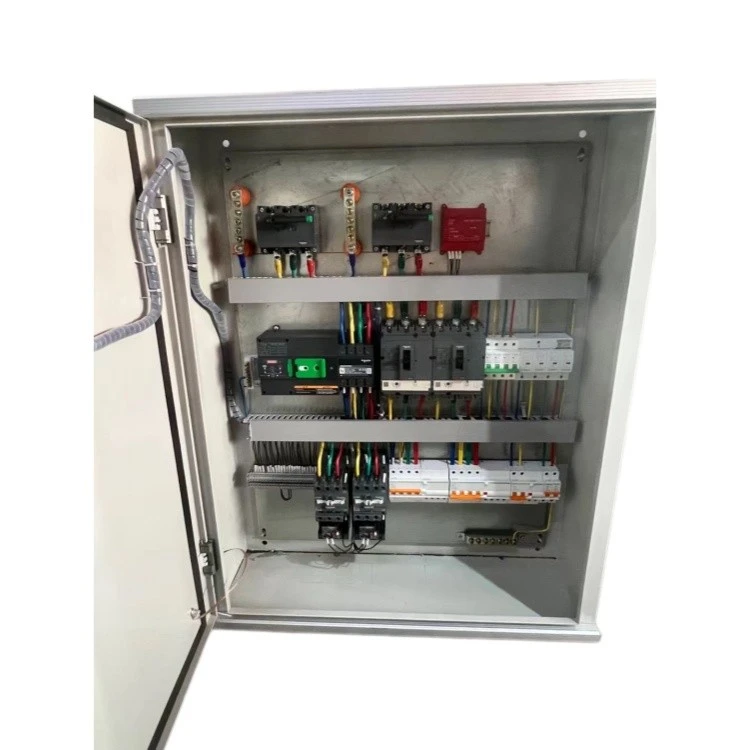

Standard din-rail mounting supports free arrangement of MCBs, RCDs, relays and terminal blocks. Internal reserved wiring channels keep cables neatly routed, simplifying installation and later circuit expansion. Multiple box dimensions cover small-capacity household use up to light-industrial branch distribution.
Reliable Safety Performance:
IP30 standard protection grade blocks indoor dust and accidental direct touch to live components. Reasonable clearance design reduces short-circuit risk caused by messy wiring. Door-lock mechanism prevents unauthorized access to internal electrical parts.
Broad Application Compatibility:
Suitable for civil building power branching, workshop lighting distribution, small-machinery auxiliary control and public facility power supply. Short lead-time for standard sizes, and customized dimensions are available for special site constraints.
Technical Specifications
|
Parameter |
Value |
|
Model |
JXF Low Voltage Distribution Box |
|
Rated Working Voltage |
AC 400V 50Hz |
|
Rated Insulation Voltage |
500V |
|
Rated Current |
Up to 250A |
|
Protection Degree |
IP30 |
|
Mounting Type |
Wall-mounted |
|
Material |
Cold-rolled steel, powder coated |
|
Executive Standard |
IEC 61439-1-2 |
|
Typical Use |
Civil power distribution, light-industry branch circuits, auxiliary equipment protection |
Application Scope
Simple in installation and cost-effective in configuration, this Household power distribution box is not limited to residential buildings. It also fits retail stores, office spaces and small workshops where decentralized branch protection is required. Where project sites demand small-size yet complete circuit protection capacity, this Mini low-voltage cabinet offers an economical alternative against bulky large switchgear. It handles lighting, socket loops and small-power equipment feeders, helping contractors simplify secondary power distribution work for new construction and renovation projects.
Why Choose Our JXF Series (Google EEAT Framework)
Following Google EEAT principles of expertise, experience, authoritativeness and trustworthiness, we focus on small-size low-voltage enclosure development and volume supply for global distributors and engineering contractors. Every Wall mounted distribution box goes through structural validation and component-matching assessment before mass production.
Expertise:
Our electrical engineers are experienced in compact enclosure layout. We pay attention to internal wiring space, creepage distance and door-opening interference. We avoid common industry flaws such as insufficient din-rail space and poor cable routing, ensuring real-world installation friendliness.
Experience:
We have supplied large batches to overseas civil and light-industrial projects. We understand different regional preferences for box dimensions, lock types and window options. We can adjust configurations to meet local market habits for both wholesale and project orders.
Authoritativeness:
Products comply with IEC 61439-1-2, supported by ISO9001 quality management system. Test reports and English-version datasheets are provided for project tender submission and distributor product filing.
Trustworthiness:
Sheet-metal cutting, bending, spraying and assembly are finished in-house. Strict incoming-material and finished-product inspection are implemented. We provide 12-24-month factory warranty, clear product documentation and responsive after-sales support.
Our well-built Household power distribution box balances safety, cost and practicality for mass-civil-construction scenarios. When you need compact secondary protection units, our Mini low-voltage cabinet brings stable performance with competitive total cost for your project.
Request A Quotation
Please inform us of required dimensions, expected current rating, door-window requirement and order volume. Our sales-engineering team will send product datasheet and competitive offer within 24-48 hours.
