Product Overview

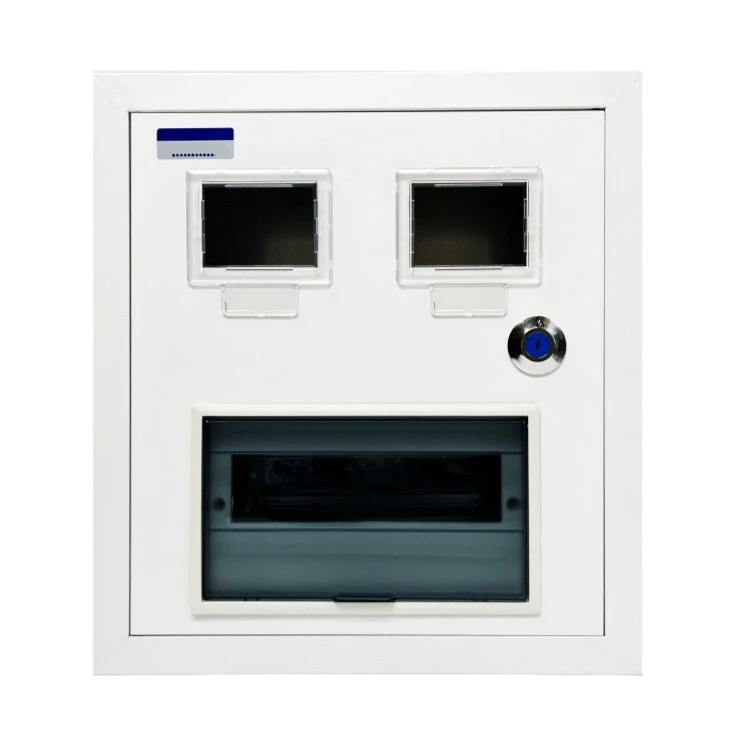

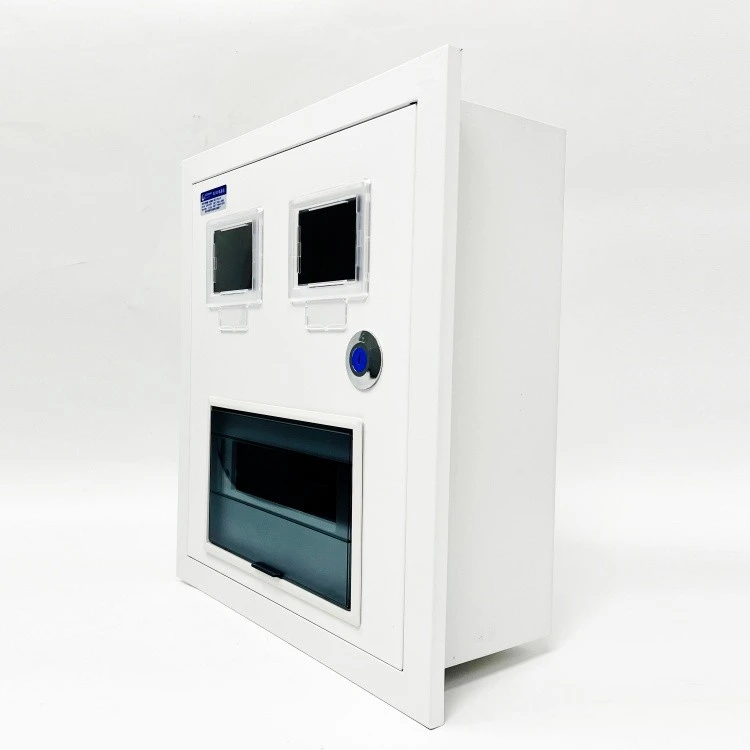

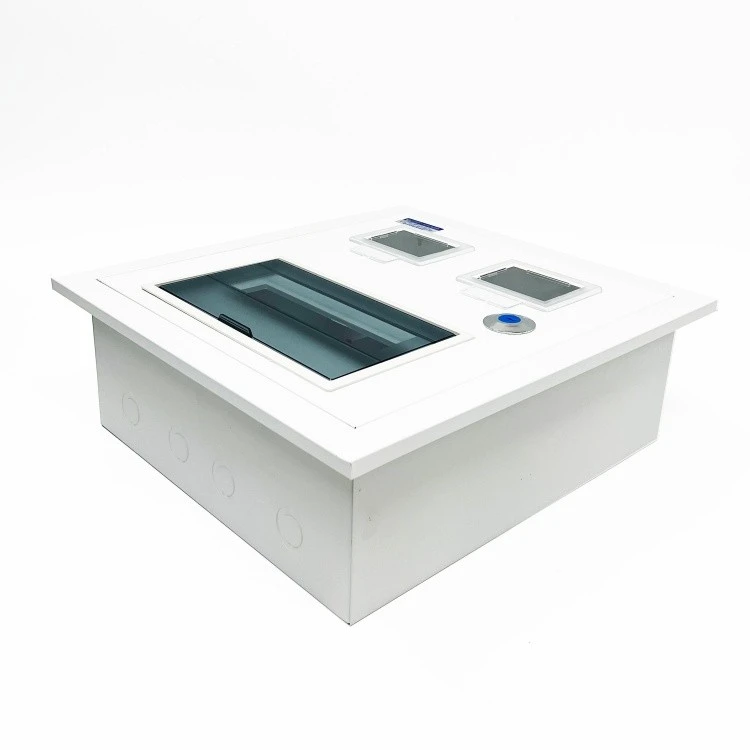

The PZ40 Two Unit Electric Energy Meter Distribution Box is a professional civil-grade metering and power distribution enclosure tailored for residential buildings, shared apartments and small commercial indoor power metering scenarios. This standardized electric energy meter distribution box supports simultaneous installation and normal operation of two sets of single-phase electric meters, realizing independent metering and separate power management for dual power consumption units. Different from large industrial power cabinets and single-meter simple enclosures, this dedicated single phase electric meter box adopts a compact modular structure, focusing on safe metering, neat wiring and basic circuit protection for civilian terminal power systems. As a cost-effective and widely applicable electricity meter distribution cabinet, it complies with global civil power metering norms, solving the problems of mixed power metering and messy line layout in multi-household shared electricity scenarios.
Core Product Features
Dual‑Unit Independent Metering Design:
Specially designed for dual-meter installation, the electric energy meter distribution box reserves standardized independent installation positions and wiring cavities for two single-phase meters. The partition structure avoids line crossing and signal interference between the two metering units, ensuring accurate and independent power data recording for each household. The integrated dual-unit layout saves installation space compared with two separate single-meter boxes, improving on-site construction efficiency.
Professional Single‑Phase Civil Adaptation:
Optimized for global 220V single-phase civil power systems, this single phase electric meter box perfectly matches the operating parameters and installation dimensions of mainstream single-phase energy meters on the market. The internal reserved breaker and terminal positions support complete circuit protection functions such as overload and short-circuit protection. The transparent cover design allows real-time viewing of meter reading and equipment operating status without opening the box, meeting daily power inspection and meter reading requirements.
Safe & Standardized Enclosure Structure:
The overall structure of the electricity meter distribution cabinet is manufactured in strict accordance with civil electrical safety standards. It adopts high-quality galvanized steel plate and flame-retardant insulating materials, with anti-rust and anti-aging surface treatment. The IP30 indoor protection grade effectively prevents dust accumulation and accidental contact with live parts. The closed structural design eliminates potential safety hazards such as electric leakage and short circuit caused by external environmental interference.
Dual Installation & Easy Maintenance:
Supporting both surface-mounted and concealed wall installation, the box body is lightweight and equipped with reserved fixing holes for quick on-site installation. The internal wiring trough is standardized and orderly, which is convenient for later circuit inspection, fault troubleshooting and equipment replacement. The reasonable internal space layout avoids crowded wiring, greatly reducing the difficulty of daily operation and maintenance for property and power management departments.
Strict Quality & Wide Compatibility:
All products undergo strict factory inspection including insulation test, voltage resistance test and structural stability test. The unified modular size design ensures strong compatibility with mainstream civil metering equipment and low-voltage electrical accessories worldwide, suitable for large-scale batch installation and project supporting use.
Technical Specifications
|
Parameter |
Technical Standard |
|
Product Model |
PZ40 Two Unit Meter Distribution Box |
|
Rated Working Voltage |
AC 220V 50Hz (Single-phase) |
|
Max Rated Current |
100A |
|
Protection Grade |
IP30 (Indoor Standard) |
|
Installation Method |
Surface-mounted / Concealed |
|
Main Material |
Galvanized Steel Plate + Flame-retardant Material |
|
Applicable Meters |
2 sets of standard single-phase energy meters |
|
Executive Standard |
GB/T 15166.2 & IEC Civil Electrical Standards |
Application Scenarios
This practical electric energy meter distribution box is widely used in residential building supporting electrical projects, duplex apartments, shared rental houses, small shops and indoor civil power renovation projects. As a dedicated single phase electric meter box for dual-household power metering, it solves the pain point of difficult separate electricity settlement for multi-household indoor power consumption. The standardized electricity meter distribution cabinet provides safe, standardized and convenient metering and power distribution solutions for civil terminal power management, and is widely recognized in global civil power engineering projects.
Product Strengths & Factory Competence
Focusing on the R&D and batch production of civil low-voltage metering boxes for many years, our factory has mature manufacturing technology and strict quality control system for PZ40 series meter boxes. We always take civil power safety and project practicality as the core design standard, providing high-quality matched equipment for global residential and commercial indoor power projects.
Professional Civil Electrical R&D Experience:
The technical team is deeply engaged in the field of civil terminal metering equipment, accurately grasping the size standards, safety specifications and wiring requirements of international household meter boxes. Targeted optimization is carried out for common problems such as insufficient internal space and poor heat dissipation of traditional dual-meter boxes to ensure stable and compliant product performance.
Rich Overseas Civil Project Cases:
We have supplied a large number of PZ40 series meter boxes for overseas residential construction and urban power grid renovation projects, familiar with the civil power metering habits and engineering acceptance standards of Southeast Asia, Africa, the Middle East and other regions, and can provide standardized and customized supporting solutions according to local project needs.
Authoritative Standard Compliance:
All products comply with national and IEC international civil electrical standards, with complete ISO9001 quality system certification and CE certification. Complete English technical specifications and test reports are provided to support project bidding, filing and third-party acceptance, fully meeting international civil engineering access requirements.
Reliable Quality & Full-Cycle Service:
All production processes are independently completed in the factory with multi-process quality inspection to ensure stable product consistency. We provide 12-24 months factory warranty and 24-hour online technical support, quickly solving installation, commissioning and after-sales problems for global engineering customers and distributors.
Get Custom Quotation
If you need high-quality PZ40 two-unit indoor metering distribution equipment for residential and commercial power projects, please contact us. We can provide standardized products and customized size services according to your project demands, and deliver competitive quotations and technical materials within 24 hours.
