Product Overview

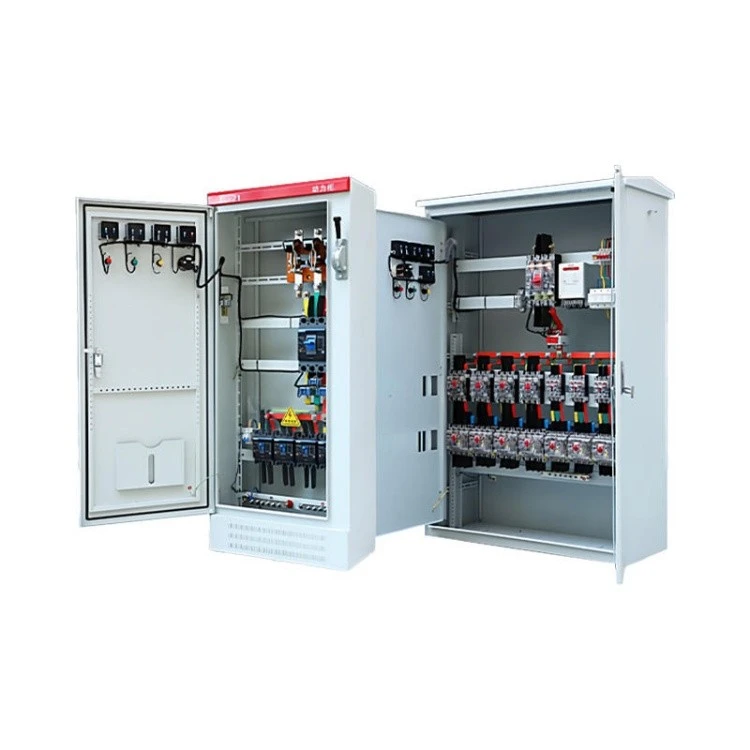

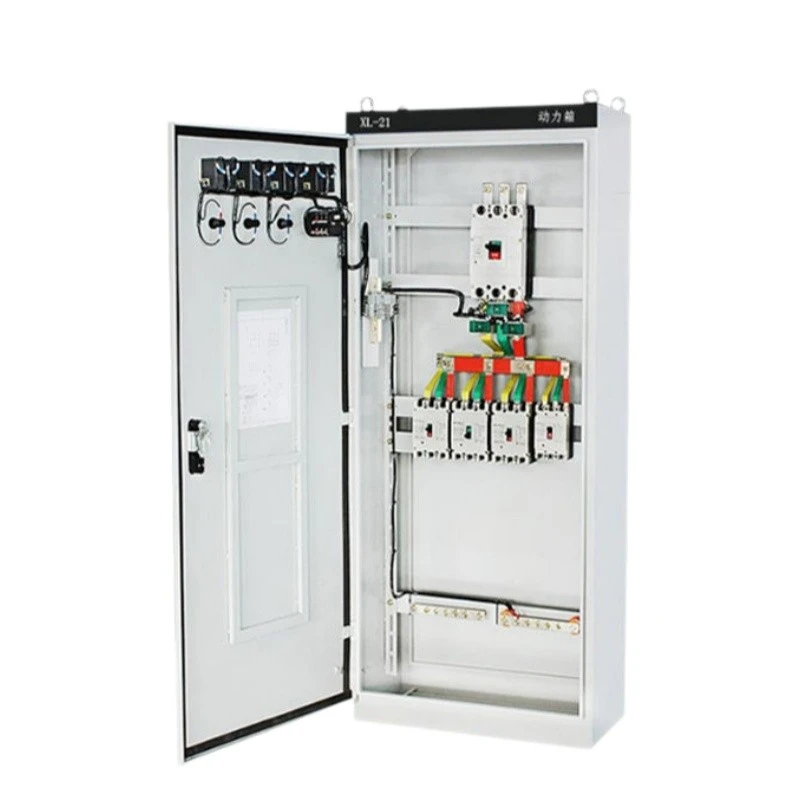

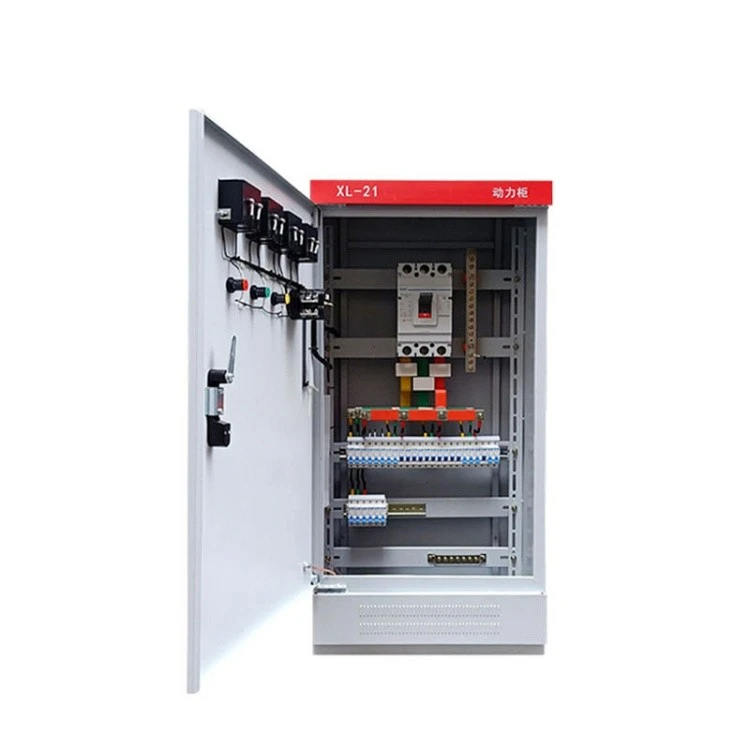

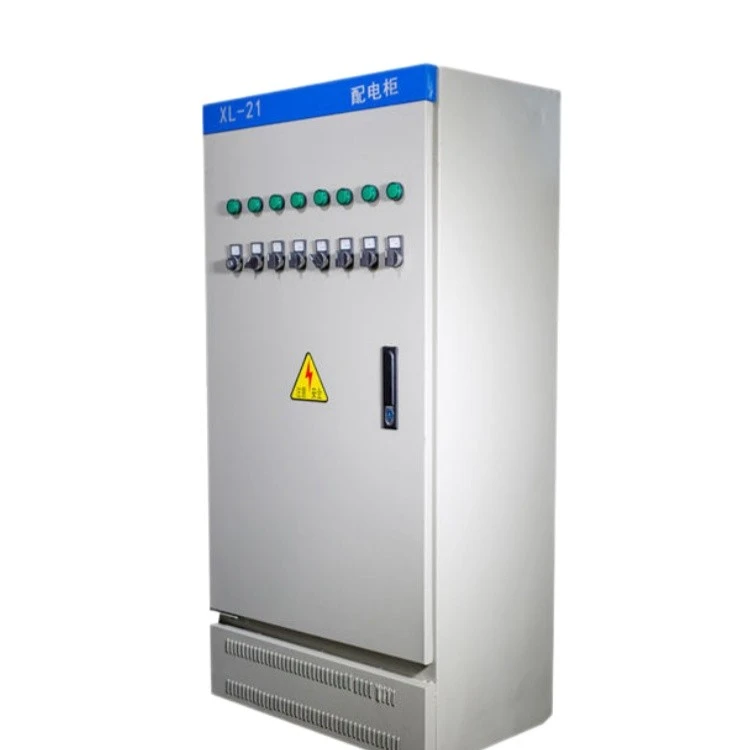

Engineered for industrial plants, commercial complexes and substation supporting projects, the low‑voltage distribution cabinet serves as core power‑control hardware for complete low‑voltage power systems. This robust low voltage switchgear cabinet integrates incoming‑line protection, power branching, load monitoring and outgoing‑circuit management within one unified cabinet frame. Different from compact household‑oriented distribution boxes, this heavy‑duty LV electrical distribution panel is built to sustain high‑current industrial loads, meeting continuous‑operation requirements for large‑scale power consumption sites. Optimized for both indoor station‑room installation and sheltered outdoor deployment, it delivers reliable power allocation and fault‑protection for heavy‑duty engineering projects worldwide.
Core Product Features
Heavy‑Current Industrial‑Grade Structure:
The low voltage switchgear cabinet adopts reinforced cabinet frame and high‑strength busbar layout. Reasonable bus‑bar compartment, cable chamber and functional unit partition effectively reduce heat accumulation during high‑current operation. Independent compartment design restricts fault‑arc spreading and improves overall equipment safety under long‑time full‑load running.
Flexible Unit Combination:
Modular‑based LV electrical distribution panel supports flexible configuration of incoming units, feeder units, metering units and capacitor compensation units. Users can adjust quantity and function of each unit according to actual project load parameters. Such modular design shortens on‑site assembly time and facilitates later‑phase expansion or equipment upgrade without large‑scale reconstruction.
Strict Safety & Insulation Performance:
All insulating components are selected with high‑quality flame‑retardant materials. Clear electrical clearance and creepage distance comply with international low‑voltage standards. Each cabinet passes insulation‑resistance, voltage‑withstand and short‑circuit withstand testing before delivery, lowering failure risks caused by current impact.
Effective Heat Dissipation & Anti‑Dust Design:
Reasonable ventilation channels are reserved for heat dissipation. Matching door seals prevent dust and moisture from entering cabinet interior. It keeps stable performance even in industrial workshops with heavy dust or high‑ambient‑temperature conditions.
Convenient Operation & Maintenance:
Front‑accessible operation and observation window design allows operators to read status indicators and complete routine operations without opening the whole cabinet. Standardized internal wiring and component layout simplify daily inspection, troubleshooting and component replacement work.
General Technical Specifications
|
Parameter |
Technical Data |
|
Product Name |
Low Voltage Distribution Cabinet |
|
Rated Operational Voltage |
AC 400V, 50Hz |
|
Rated Insulation Voltage |
Up to 690V |
|
Protection Degree |
IP30‑IP41 (customizable) |
|
Installation Method |
Floor‑standing |
|
Main Material |
Thickened cold‑rolled steel sheet |
|
Applicable Load |
Industrial motor load, large‑scale commercial comprehensive load |
|
Executive Standard |
IEC 61439‑1‑2 |
Application Scenarios
Widely adopted in manufacturing workshops, large shopping malls, data center auxiliary power supply, municipal power stations and industrial park power‑supply systems, this reliable low voltage switchgear cabinet undertakes main‑loop power receiving and multi‑loop power distribution tasks. As key station‑type power hardware, the LV electrical distribution panel stabilizes power transmission for high‑capacity consumption occasions and provides reliable short‑circuit, overload protection for downstream electrical equipment. It fits new‑construction projects as well as reconstruction‑and‑expansion of existing power distribution systems.
Manufacturing & Project Competence
Our factory focuses on R&D and production of station‑type low‑voltage power distribution hardware. Every finished low voltage switchgear cabinet goes through multi‑step mechanical and electrical performance tests before shipment.
Our engineering team accumulates abundant practical experience in industrial power‑distribution system matching. We master cabinet thermal‑dissipation design, busbar configuration and compartment isolation technology, avoiding common defects such as local overheating and unreasonable layout.
We have delivered quantities of complete cabinets for overseas industrial and municipal projects. We are familiar with local power‑grid requirements and project acceptance standards of multiple regions and can adjust cabinet schemes for regional‑specific engineering conditions.
Products strictly follow IEC international standards. Complete ISO9001 certification, test reports and English‑version technical documents are supplied, supporting tendering and third‑party inspection.
All production procedures are finished in‑house with multi‑layer quality inspection. We provide 12‑24 months factory warranty and remote technical guidance for overseas partners.
Well‑structured and high‑reliability LV electrical distribution panel minimizes hidden risks for industrial power‑supply systems and reduces overall project operation‑maintenance expenditure.
Request For Quotation
Please inform us of your incoming‑outgoing loop quantity, rated current requirement, protection‑grade demand and order volume. Our technical‑sales team will send customized layout proposal and competitive quotation within 24‑48 hours.
