Modular Consumer Unit | PZ30 Wall Mount Distribution Box For MCB

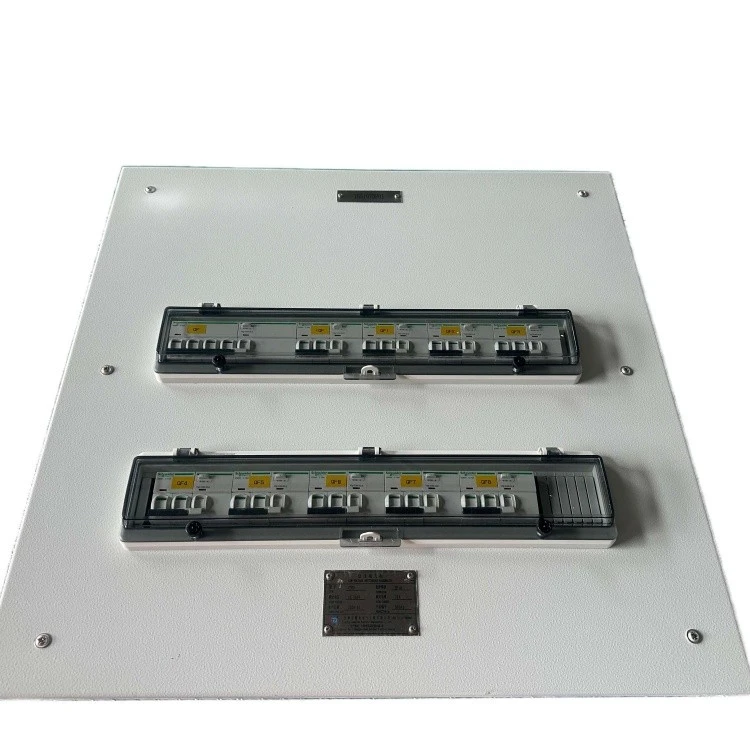

This dedicatedwall mount distribution box for MCB adopts international 9mm modular installation standards, perfectly compatible with all mainstream DIN-rail type MCBs, circuit breakers and leakage protectors on the market. The internal multi-position reserved installation slots support flexible combination of 4-way to 36-way circuits, allowing free configuration of single-row and double-row layouts according to actual power consumption demands. The standardized modular design greatly improves electrical installation efficiency and circuit uniformity.

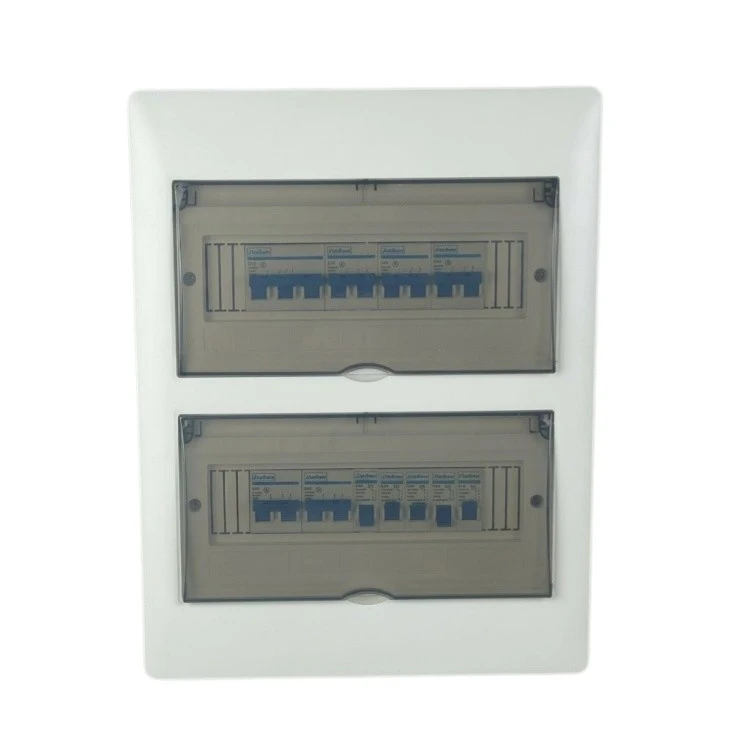

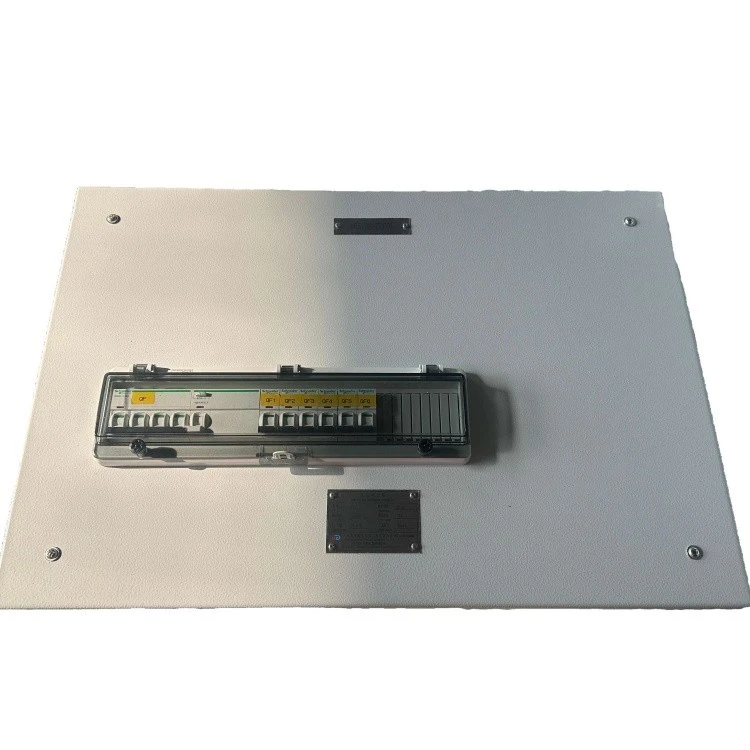

As a multi-scenario applicable flush mount MCB distribution panel, it supports both flush concealed installation and surface wall mounting. The ultra-thin box body structure fits closely with the wall after embedded installation, realizing seamless decoration integration without occupying indoor space. The transparent protective cover allows intuitive observation of MCB working status and trip faults without opening the box, balancing aesthetic appearance and daily maintenance convenience.

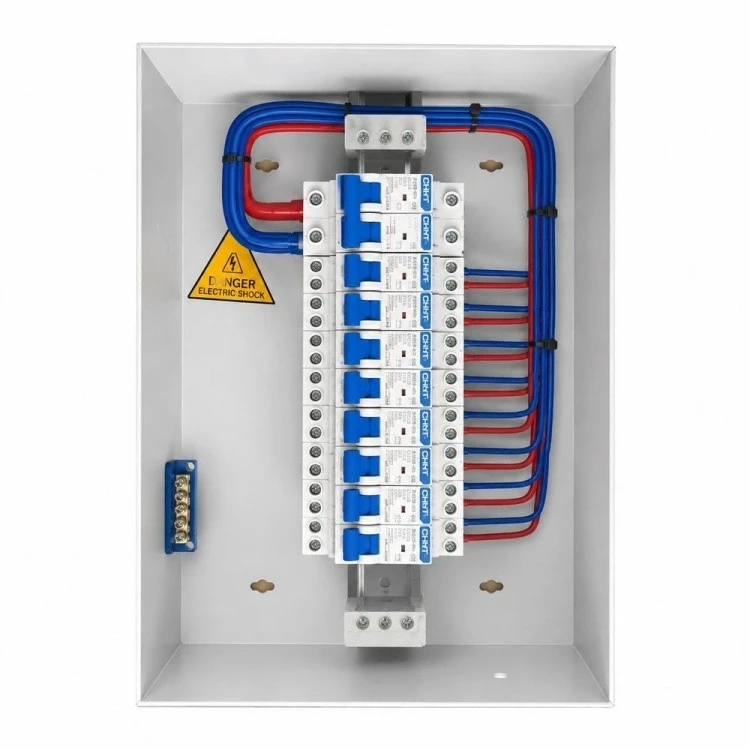

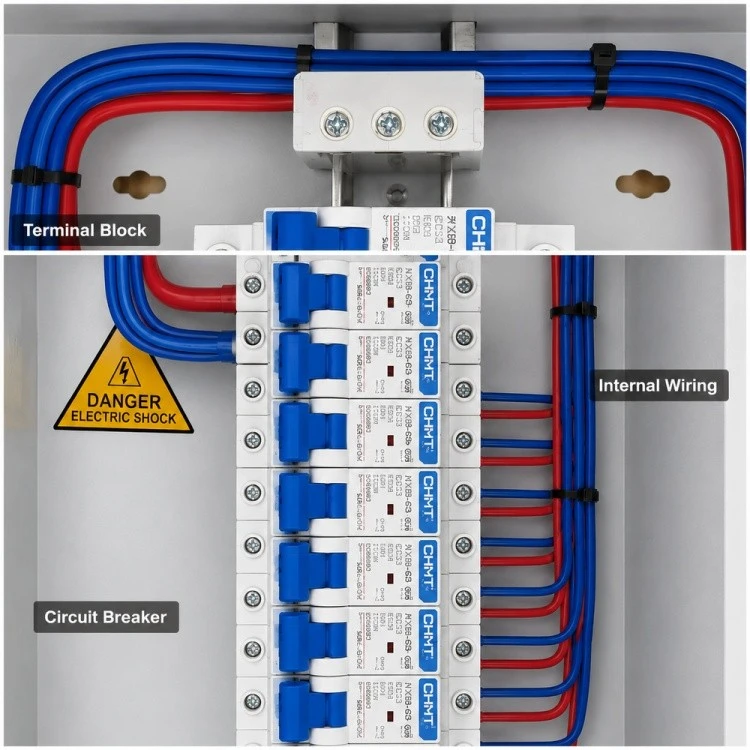

This robust modular consumer unit is built with high-quality galvanized steel plate and flame-retardant insulating materials, featuring excellent compression resistance, anti-aging and flame-retardant performance. The fully insulated internal structure prevents accidental contact with live parts, while the built-in zero and ground terminal rows ensure standardized wiring. It provides effective overload, short-circuit and leakage protection for indoor lighting, socket and electrical equipment circuits, fully guaranteeing terminal power consumption safety.

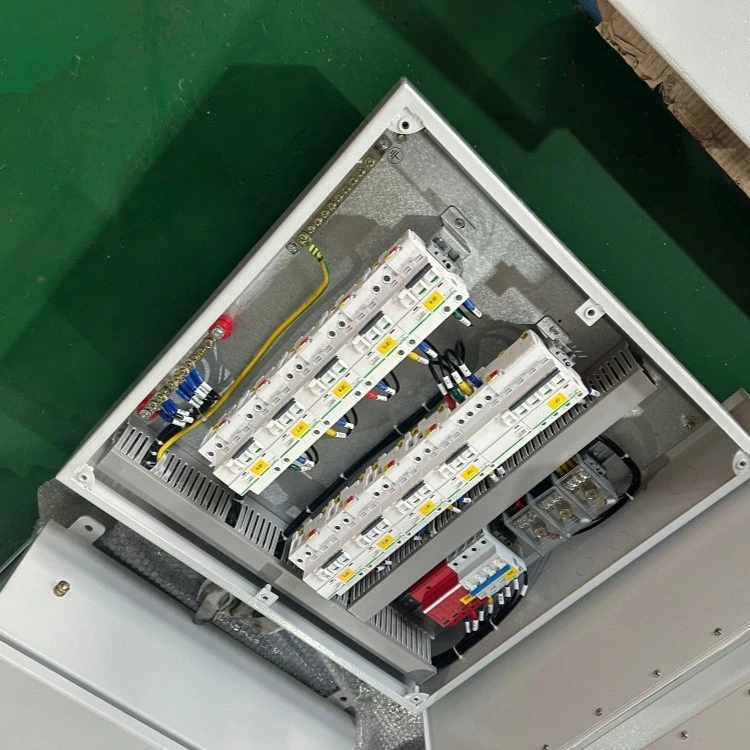

Designed for global civil low-voltage power systems of 220V/380V, the product adapts to household, office, store and small factory power distribution scenarios. The internal partition and wiring trough are reasonably arranged with clear circuit partitions, facilitating later circuit inspection, fault troubleshooting and component replacement. The reserved heat dissipation gaps ensure natural air circulation, avoiding equipment overheating during long-term operation.

The box body undergoes multi-layer electrostatic spraying and anti-corrosion treatment, with smooth surface and strong rust resistance. The precise stamping process ensures tight box closure and stable structural deformation resistance. All products pass strict insulation resistance and voltage resistance tests, maintaining long-term stable working performance in indoor low-dust and dry environments.
